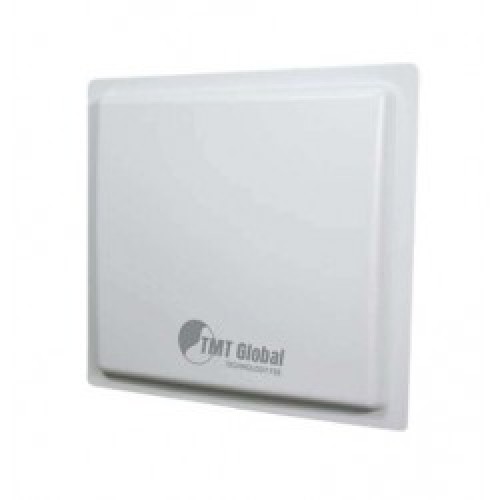

TMT Global Long Rang Reader

TMT Global UHF RFID Long Rang Reader 15M in UAE

TMT Global UHF RFID Long Rang Reader 15m Range:

• TMT Global  Long Range Uhf Reader Up To 15m Range

Functions:

• UHF (860-868MHz) Band, Equipped with 12 DBI Antenna
• Support Standard RS-232, Wigand Interface
• Multi-Group I/O Ports, Controlling the Functional Mode of the Reader/writer
• Order-trigger, set time-trigger and out-trigger suitable for customer’s applications
• Upgrade firmware by serial port online
• Strong API user interface

Applications:

• Vehicle Parking, Intelligent Weighing
• Warehouse logistics management
• Asset management
• Production line management
• Performance Index
• Operating Frequency: 860-868MHz, RF band customized (optional)
• Frequency Hopping: FHSS or Fixed Frequency
• Power Output: +20dBm ~ +30dBm@50Ω load, 1dBm each step
• Antenna: Built-in 12dBi linear polarization antenna (horizontal/vertical customized)
• Communication Interfaces: RS-232, Wiegand 26/34
• Optional Interfaces:RS-485, 802.11 WIFI Module and 10M/100M Ethernet interfaces
• I/O Interfaces: 2-channel Relay Output, 2-channel Trigger Input, 2-channel level Output (optional)
• Firmware Update: Firmware Upgrade
• Application Software Platform: API(C++, C#) development kit (can be customized)

Tag Operation:

• Tag Protocol: ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
• Reading Range: 0~15m
• Writing Range: 0~5m
• Mechanical/Electric Performance
• IP Rating: IP66
• Indicator: Buzzer and LED(Power, Antenna, Reading/Writing)
• Power: DC 12V
• Power Assumption: 2W(Standby), 10W(Working)
• Product Dimension: 445mm x 445mm x 78mm (L x W x H)
• Package Dimension: 600mm x 500mm x 110mm (L x W x H)
• Net Weight: 3.5kg
• Gross Weight: 6.23kg
• Operating Temperature: -40℃ ~ +60℃
• Storage Temperature: -60℃ ~ +80℃
• Humidity: 5%～ 95%(non-condensing)
