SOMMER Twist M

SOMMER Twist M Swing Gate Motor in UAE

SOMMER TWIST M Swing Gate Opener Motor in UAE

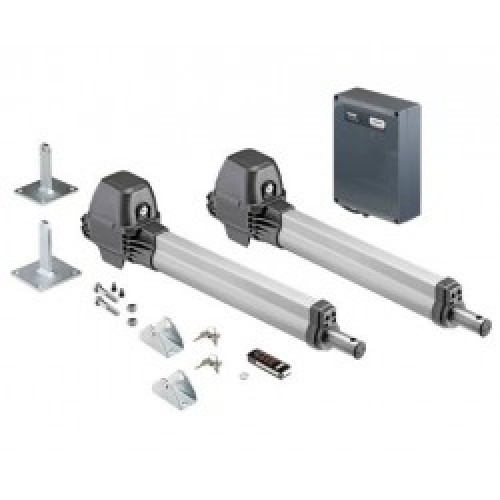

• Swing gate operator twist M Set 2-leaf
• The powerful swing gate operator for gates with a leaf width of up to 2.5 m.
• Article number: S13695-00001

Sommer twist M Technical data:

• Gate weight max : 300 kg
• Max. gate leaf width : 2,500 mm
• Max. gate inclination : 10 %
• Max. gate filling : 100 %
• Rated voltage range 1 : 220-240 V
• Rated frequency : 50-60 Hz
• Motor voltage : DC 24 V
• Max. Thrust speed : 16.5 mm/s
• Max. Opening angle : 120 °
• Number of radio channels : 2
• Motor duty cycle : ED 15% S3
• Protection class : IP44
• Protection control unit : IP65
• Temperature min. : -25 °C
• Temperature max. : 65 °C
