CAME ATS50AGS

CAME ATS50AGS Swing Gate Motor Supplier in Dubai, Sharjah & Abu Dhabi UAE

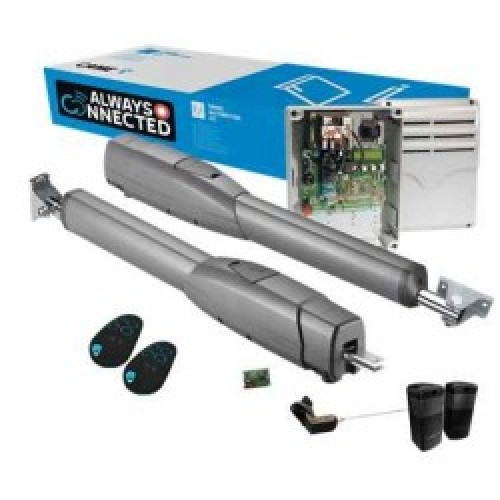

• The CAME ATS50AGS (code 801MP-0060) is a powerful 230V irreversible telescopic gear motor
• designed for large swing gates in residential and commercial applications across the UAE.
• This motor is engineered for gate leaves up to 5 meters long and weighing up to 400 kg,
• offering reliable performance even in demanding conditions. With its telescopic arm design,
• the motor delivers smooth and controlled movement,
• ensuring secure opening and closing cycles every time.
• Finished in elegant RAL7024 grey, the ATS50AGS combines durability with modern aesthetics.
• The IP54 protection rating makes it ideal for UAE’s harsh climate,
• protecting the internal components from dust and water splashes.

Key Features

• 230V irreversible telescopic gear motor
• Supports gate leaves up to 5 meters and 400 kg
• Maximum C dimension of 200 mm
• Durable RAL7024 grey housing
• Dust and splash resistant with IP54 rating
• Suitable for residential, commercial, and light industrial gates
• Smooth and reliable operation with controlled thrust

Technical Specifications

• Product Code: 801MP-0060
• Model: ATS50AGS
• Power supply to motor: 230V AC
• Absorption: 1 A
• Power consumption: 250 W
• Manoeuvring time at 90°: 20 seconds
• Cycles per hour: 20
• Thrust force: 400 – 3000 N
• Operating temperature: –20°C to +55°C
• Motor thermal protection: 150°C
• Protection rating: IP54

Applications

• Residential villa swing gates
• Commercial building entrances
• Warehouse and industrial swing gates
• Heavy-duty compound gates
