BFT ELI AC A40

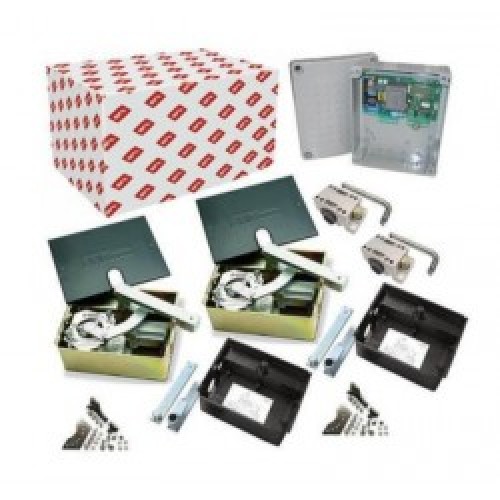

BFT ELI AC A40 Underground Swing Gate Motor in UAE

BFT ELI AC A40 Underground Swing Gate Motor:

• ELI AC A40
• Refence P930132 00002
• Part number 2601473
• Underground electromechanical operator 230V
• for swing gates up to 4 m in length.

BFT ELI AC A40 Main features:

• uper fast AC35 motors: Maximum comfort.
• Fast opening is ideal for sites which require reduced
• waiting times meaning you can quickly clear busy or hazardous roads.
• Fast closing can help to improve security keeping the property safer from intruders.

BFT ELI AC A40 Technical data sheets:

• Speed : 1.45 Rpm
• Motor voltage : 230 V
• Opening time to 90° : 13" (no slowdown)
• Limit switch standard : N/A
• Max. width of door/gate wing : 4 m
• Limit switch optional : Magnetic
• Maximum angle : 120 °
• Mechanical stops : OP+CL
• Impact reaction : Electronic clutch (with control panel)
• Compatible control unit : RIGEL6, ALENA SW2
• Release : Lever or lever with personalised key
• Max. length gate panel without electric lock 2.5 m
• Protection rating : IP67
• Max. motor torque : 350 Nm
• Environmental conditions : -20 ÷ 55 °C
• Max. opening cycles per hour : 20
• Interconnectivity : no
